Drum Mower:

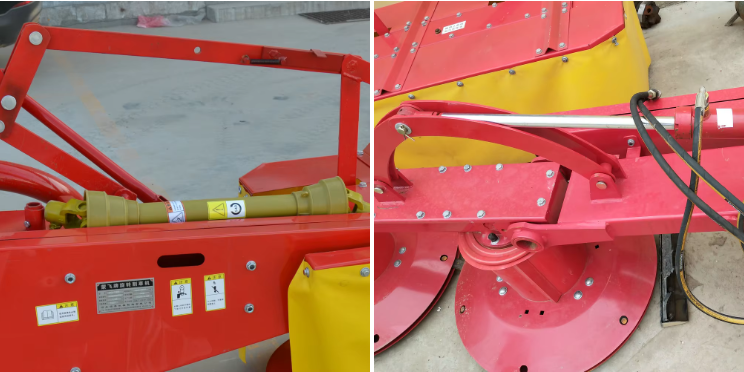

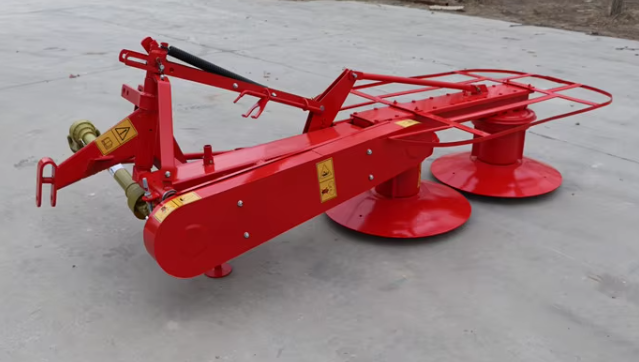

The DM165 mower is a two—drum mower. Each drum has three knives, which can be changed quickly with a simple tool. The hay cut by the knives is carried between the drums and put in a loosely laid swath. Three V—belts transmit power to the input gear shaft, then to the main drive shaft, which in turn drives the drums through the bevel gears.

A breakaway device is incorporated on this machine, which automatically operates when the mower hits an obstruction. This protects the drums from damage.

• Move at High Speeds.

• No Hydraulics Necessary (unless using Hydraulic Conversion Kit).

• Few Moving

• Parts & Easy Maintenance.

• Great Alternative to Disc & Sickle bar Mowers for Small Hay Producers.

• Easily Cuts Through Tall & Thick Grass.

• Designed for Reliable Mowing in All Conditions.

•


  Model	DM-125	DM135	DM165	DM-185
  Cutting Width	125	135 cm	165 cm	185cm
  Cutting Height Adjust.	3	3cm	3cm	3cm
  Transport Width	85	95 cm	140 cm	165cm
  Transport Length	255	265 cm	285 cm	305cm
  Height	110	110 cm	110 cm	110cm
  Weight	330	340 kg	390 kg	430kg
  Drums	2pcs	2pcs	2pcs	2pcs
  Blades	6pcs	6pcs	6pcs	6pcs
  P.T.O Speed	540rpm	540 rpm	540 rpm	540 rpm
  P.T.O Drive Shaft	With	with	with	with
  Mounted Cat	Cat 1	Cat 1	Cat 1 & 2 & 3	Cat 1 & 2 & 3
  Tractor power	≥20hp	≥30hp	≥28hp	≥50hp

•

•

•

•

•

•

•

•

•

•

•
