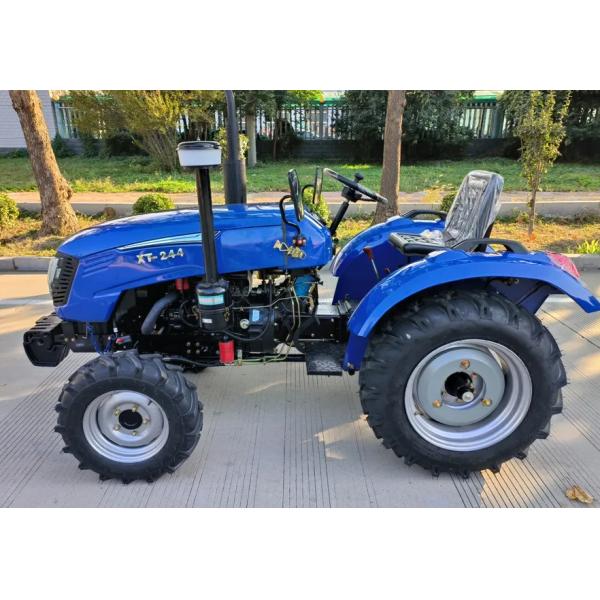

XINGTAI Mini Tractor Small Mini Tractor with Four Wheels and Cheap Tractor 12HP-25HP

Ask Lasest Price
Brand Name :	OEM
Model Number :	12HP-25HP
Certification :	ISO9001 CE
Payment Terms :	T/T
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

XINGTAI Mini Tractor Small Mini Tractor with Four Wheels and Cheap Tractor 12HP-25HP

Model		XTLT 220	XTLT240/250	XTLT240/250	XTLT300
Drive Type		4×2 WD
Rated Traction Force(kn)		4.6	5.2	5.2	6.5
Overall Dimension (L×W×H/mm)		2580×1200×1885	2580×1200×1885	2580×1200×1885	2880×1250×1900
Structure Weight (kg)		850	850	1070	1070
Min. Operating Weight (kg)		970	970	1190	1190
Wheelbase (mm)		1450	1450	1560	1560
Tread (mm)		990	990	1020	1020
Ground Clearance (mm)		340	340	370	370
Min. Turning Radius (m)		3.9	3.9	4.2	4.2
Speed (km/h)	Forward	2.84/5.42/8.28/10.78/17.53/29.35	2.84/5.42/8.28/10.78/17.53/29.35	1.92/2.94/4.61/6.38/8.88/13.59/21.33/29.41	2.21/3.37/4.61/6.38/8.88/13.59/21.33/31.76
Speed (km/h)	Reverse	2.84/10.78	2.84/10.78	2.54/12.27	2.54/12.27
Hydraulic Suspension		I Category, Rear Mounted, Three Point Suspension
PTO Shaft Type		Dependent, Clockwise, 6 Spline, Φ35mm, 540rpm
Tire Model		4.00-14/7.50-20	4.00-14/7.50-20	6.00-16/9.5-24	6.00-16/9.5-24
Engine Specification
Engine Model		KM380BT	KM385BT	KM385BT	KM390BT
Engine Type		3 Cylinder, Vertical, Water cooled, 4 stroke Diesel
12-hour Rated Power (kW)		16.2	17.6/18.4	17.6/18.4	22.1
Rated Speed (rpm)		2300	2350	2350	2400
Bore×Stroke (mm)		80×90	85×90	85×90	90×100
Fuel Consumption (g/kW*h)		≤238	≤238	≤238	≤238
Displacement (L)		1.49	1.65	1.65	1.909

Model		XTLT224	XTLT244/254	XTLT244/254	XTLT304
驱动类型Drive Type		4×4 轮式4×4 WD
额定牵引力(kn) Rated Traction Force(kn)		5.4	6.2	6.2	7.5
外形尺寸(长×宽×高/mm) Overall Dimension (L×W×H/mm)		2580×1200×1885	2950×1250×1980	2950×1250×1980	2950×1250×1980
结构质量(kg) Structure Weight (kg)		1050	1200	1200	1200
最小使用质量(kg) Min. Operating Weight (kg)		1170	1320	1320	1320
轴距(mm)Wheelbase (mm)		1560	1690	1700	1700
轮距(mm)Tread (mm)		990	990	1020	990/1020
地隙(mm) Ground Clearance (mm)		245	235	235	235
最小转向半径(m) Min. Turning Radius (m)		4.2	4.5	4.5	4.5
理论速度(km/h) Speed (km/h)	前进 Forward	2.84/5.42/8.28/10.78/17.53/29.35	2.84/5.42/8.28/10.78/17.53/29.35	2.21/3.37/4.61/6.38/8.88/13.59/21.33/31.76	2.21/3.37/4.61/6.38/8.88/13.59/21.33/31.76
理论速度(km/h) Speed (km/h)	后退 Reverse	2.84/10.78	2.84/10.78	2.84/10.78	2.54/12.27
悬挂装置 Hydraulic Suspension		I Category, Rear Mounted, Three Point Suspension
动力输出轴 PTO Shaft Type		Dependent, Clockwise, 6 Spline, Φ35mm, 540rpm
轮胎型号 Tire Model		6.00-14/7.50-20	6.00-14/7.50-20	6.00-16/9.5-24	6.00-16/9.5-24
发动机参数/Engine Specification
发动机型号 Engine Model		KM380BT	KM385BT	KM385BT	KM390BT
发动机类型 Engine Type		3 Cylinder, Vertical, Water cooled, 4 stroke Diesel
12小时功率(kW) 12-hour Rated Power (kW)		16.2	17.6/18.4	17.6/18.4	22.1
转速(rpm) Rated Speed (rpm)		2300	2350	2350	2400
缸径×冲程(mm) Bore×Stroke (mm)		80×90	85×90	85×90	90×100
燃油消耗率(g/kWh) Fuel Consumption (g/kWh)		≤238	≤238	≤238	≤238
排量(L) Displacement (L)		1.49	1.65	1.65	1.909

Model		XTLT350	XTLT400	XTLT450
Drive Type		4×2 WD
Rated Traction Force(KN)		7	8.2	9.3
Overall Dimension (L×W×H/mm)		2780×1425×1900	3165×1425×2000	3285×1425×2000
Structure Weight (kg)		1200	1200	1330
Min. Operating Weight (kg)		1320	1320	1450
Wheelbase (mm)		1610	1760	1835
Tread (mm)		1100/1200	1100/1200	1100/1200
Ground Clearance (mm)		370	370	370
Min. Turning Radius (m)		4.5	4.6	4.6
Speed (km/h)	Forward	2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84	2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84	2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84
	Reverse	3.18/14.71	3.18/14.71	3.18/14.71
Hydraulic Suspension		I Category, Rear Mounted, Three Point Suspension
PTO Shaft Type		非独立式,顺时针,6花键,花键名义外径35mm,540rpm Dependent, Clockwise, 6 Spline, Φ35mm, 540rpm
Tire Model		6.00-16/9.50-24	6.00-16/9.50-24	6.00-16/9.50-24
Engine Specification
Engine Model		4L22BT	KM490BT	YN25GB
Engine Type		4 Cylinder, Vertical, Water cooled, 4 stroke Diesel
12-hour Rated Power (kW)		25.7	29.5	33
Rated Speed (rpm)		2300	2300	2300
Bore×Stroke (mm)		85×95	90×100	90×100
Fuel Consumption (g/kW*h)		≤250	≤250	≤250
Displacement (L)		2.156	2.4	2.54

Model		XTLT354	XTLT404	XTLT454
Drive Type		4×4 WD
Rated Traction Force(KN)		8.2	9.4	10.5
Overall Dimension (L×W×H/mm)		2780×1425×1900	3165×1425×2000	3285×1425×2000
Structure Weight (kg)		1200	1200	1330
Min. Operating Weight (kg)		1320	1320	1450
Wheelbase (mm)		1610	1760	1835
Tread (mm)		1100/1200	1100/1200	1100/1200
Ground Clearance (mm)		280	280	280
Min. Turning Radius (m)		4.8	4.8	4.8
Speed (km/h)	Forward	2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84	2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84	2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84
	Reverse	3.18/14.71	3.18/14.71	3.18/14.71
Hydraulic Suspension		I Category, Rear Mounted, Three Point Suspension
PTO Shaft Type		Dependent, Clockwise, 6 Spline, Φ35mm, 540rpm
Tire Model		6.00-16/9.50-24	6.00-16/9.50-24	6.00-16/9.50-24
Engine Specification
Engine Model		4L22BT	KM490BT	YN25GB
Engine Type		4 Cylinder, Vertical, Water cooled, 4 stroke Diesel
12-hour Rated Power (kW)		25.7	29.5	33.3
Rated Speed (rpm)		2300	2300	2300
Bore×Stroke (mm)		85×95	90×100	90×100
Fuel Consumption (g/kW*h)		≤250	≤250	≤250
Displacement (L)		2.156	2.4	2.54
